智能电容外浮筒液位计
Intelligent capacitive outer float fluid level gauge
一、概述 Introduction
FY2AW系列智能浮筒液位计是设备预留汽、液相孔，外配根部截止阀和测量管的方式安装，适用于工业生产过程中的各种设备。容器中液位的连续线性测量输出4～20mADC标准信号，可与任何4～20mADC输入的指示仪、记录仪、调节仪DCS集中控制系统等仪表配接，实行显示、调节及控制等特点。The intelligent outer float fluid level gauge in FY2AW series is installed through the matching stop valve and measuring tube mounted at the root with the prearranged vapor/ fluid phase hole on the equipment, it can be applicable for various equipments during industrial production procedure. based on the continuous linear measurement on the fluid level in container, it shall output the ADC standard signal in 4~20mA, and can be adapted with any instruments like indicator, recorder, accommodometer and DCS integrated control system etc with 4~20mA ADC input, to perform the features such as display, adjustment and control etc.
智能电容式液位计作为本质安全型产品符合 GB3836.1-2010《爆炸性气体环境用电气设备第1部分：通用要求》和GB3836.4-2010《爆炸性气体环境用电气设备第4部分：本质安全型“i”》的有关要求，防爆标志为：ExibIIBT5 Gb，适用于 1 区、2区，含有IIA～IIB类，温度组别为T1~T5的爆炸性气体混合物的危险场所。 As intrinsically safe product, the intelligent capacitive fluid level gauge complies with the relative requirements as per in GB3836.1-2010 –the Electronic Equipment Used in Explosive Gas Environment, Part One: General Requirement and the GB3836.4.2010 – the Electronic Equipment Used in Explosive Gas Environment, Part Four: Intrinsically Safe Type “i”, its explosion-proof symbol is ExibIIBT5 Gb, can be used in Zone 1 and Zone 2, the hazardous place where containing the explosive gas mixture in class IIA~IIB, and temperature category T1~T5.
二、特点 Features
1.实用性强，按键设置，一键校准，操作极其简单。It has the strong practicability with key configuration and one-key correction; its operation is remarkably simple;
2.采用数字软件滤波技术，不受气量和液位摆动的影响，既能快速跟踪瞬态变化，又能显示液位的平均效应，显示稳定准确。By using the digital software filter technique, it shall not be affected by the gas amount and fluid level fluctuation, can both make the fast tracking on switching transients and displaying the average effect of fluid level with stable and accurate indication;
3.智能型液位仪在18-24V的电压均可正常工作，满足任何型号的安全栅。The intelligent fluid level gauge can work under the voltage from 18 -24V generally, accommodate to the guard grating in any models.
4.采用软硬件抗干扰和纠错技术，在非防爆场所亦无需隔离，直接入网，降低了电路复杂性，减少成本。By adopting the anti-interference and error correction technologies with software and hardware, it shall not need to be isolated in the non-explosion-proof site and can be directly connected, reducing the complexity of circuit and cost;
6.结构牢固，机电一体化，产品自带外测量筒，法兰（化工标准、石油标准等国标）。Its structure is firm and in electromechanical integration, the outer measuring tube and flange (complying with national standards such as chemical industry and petroleum etc) is also accompanied with the product.
三、主要性能指标Main performance index
Measuring range: 0～4500mm, special requirement can be customized accordingly 测量范围：0～4500mm 特殊可订做
Working pressure 工作压力：-0.1MPa～+10MPa
Working temperature 工作温度：-70℃～+350℃，
Material for measuring tube: stainless steel, carbon steel 测量筒材质：不锈钢、碳钢；
Output signal 输出信号：4-20mA、4-20mA叠加HART协议。
Long term stability 长期稳定性：≤0.2%FS/年 year
Accuracy frade 精度等级：0.5%FS;
Mounting mode: 1. Welding 固定方式：1.焊接
2. flange mounting 法兰安装，
3.特殊要求请在订货前说明（被测介质为结晶、结垢、粘度很高，对精度有一定的影响）；For special requirements, please specify before ordering; (if the detected medium is crystallization, scale formation or with higher viscosity, it may impact the accuracy in certain degree. )
Explosion-proof symbol: 防爆标志：ExibllBT5 Gb；
Applicable medium: any medium like liquid ammonia, methanol, cooper solution, C-carbon solution, desulfurized solution etc that not corrosive to PTFE and stainless steel 适用介质：液氨、甲醇、铜液、丙碳液、脱硫液等对聚四氟乙烯及不锈钢无腐蚀的任意介质；

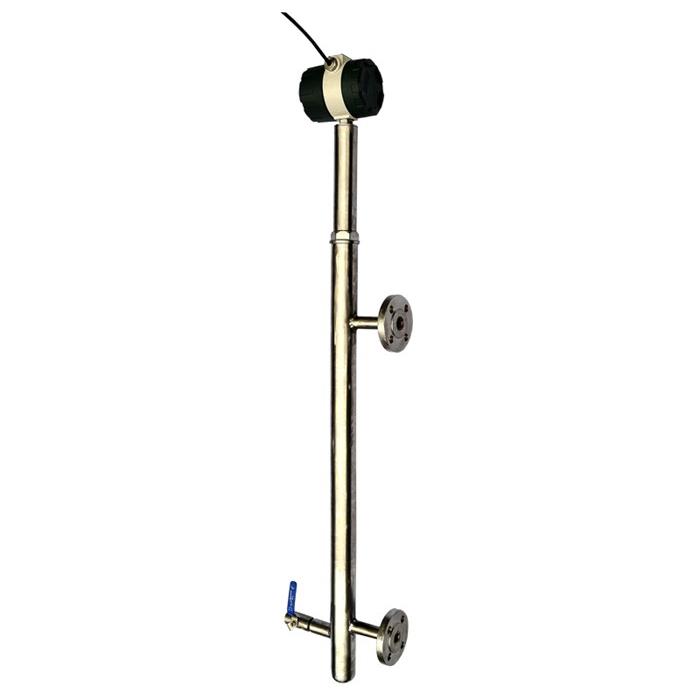

四、产品外形 Product appearance
六、选型表 Selection table
|
FY2AW |
智能电容浮筒液位计选型表Intelligent capacitive outer float fluid level gauge |
||||||
|
|
产品 类型 Product type |
|
|||||
|
1 |
|
耐压≤2.5MPa，温度≤250°C Pressure resistance ≤2.5MPa, temperature ≤250°C |
|||||
|
2 |
|
耐压≤4.0MPa，温度≤250°C Pressure resistance ≤4.0MPa, temperature ≤250°C |
|||||
|
3 |
|
耐压≤6.4MPa，温度≤250°C Pressure resistance ≤6.4MPa, temperature ≤250°C |
|||||
|
4 |
|
耐压≤10.0MPa，温度≤250°C Pressure resistance ≤10.0MPa, temperature ≤250°C |
|||||
|
|
输出output 信号 signal |
|
|||||
|
A |
|
4-20mA信号输出，液晶显示 4~20mA signal output, LED display |
|||||
|
B |
|
4-20mA+HART协议，液晶显示 4~20mA+HART protocol, LED display |
|||||
|
|
代码 Code |
测量范围 Measuring range |
|||||
|
L1 |
|
350mm |
|||||
|
L2 |
|
440mm |
|||||
|
L3 |
|
600mm |
|||||
|
L4 |
|
1000mm |
|||||
|
L() |
|
特殊规格请在括号内填写 For special requirements, please fill in the bracket |
|||||
|
|
代码 Code |
接液材质 Fluid receiving material |
|||||
|
D |
|
请在订货时备注 Please remark during ordering |
|||||
|
|
连接方式 Connection mode |
|
|||||
|
F |
|
法兰安装(需提供公称直径） Flange mounting (nominal diameter shall be provided) |
|||||
|
M |
|
螺纹安装（需提供尺寸） Screw thread mounting (dimension shall be provided) |
|||||
|
|
特殊要求请备注 Special request please leave remark accordingly. |
||||||
|
电容浮筒液位计 Capacitive outer float fluid level gauge |
|
|
|
|
|
|
|
七、Ordering instructions:
1、测量范围 Measuring range
2、工作压力 Working pressure
3、连接方式 Connection mode
4、测量介质 Measuring medium
