油位传感器

一、概述

FY9033油位传感器是为铁路机车、汽车油箱、油罐车、油库等油位的精确测量而量身定做的专门仪表。整机无任何可动或弹性部件，耐冲击、安装方便、可靠性高、精度高、性价比高。可安装在各种场合对汽油、柴油、液压油等油位进行准确的测控，也适用于各种非导电液体的测量。在现场条件特别恶劣，电磁干扰特别严重、搅拌特别厉害情况下测量导电介质也可以采用此类产品。The special oil level gauge for vehicle is the special instrument customized for precise measurement on the level of oil tank for railway locomotive and vehicle, oil tanker and depot etc. The whole machine has no movable or elastic parts, with impact-resistance, convenience installation, high reliability, high accuracy and cost-efficiency. It can be installed in any place to measure the precise measurement and control on the level of gasoline, diesel and hydraulic fluid etc, and also applicable for measurement on various non-conductive liquids. While it’s under the situations with particularly harsh conditions on the site, badly serious electromagnetic interference and even terrible stirring, such product can also be used for measurement on the conductive mediums.

油位传感器核心部件采用先进的射频电容检测电路经过 16 位单片机经过精确的温度补偿和线性修正，转化成标准电信号（ 4-20mA ）或电压信号（0-5V)。全系列变送器都具有自校准功能，用户可通过两个按键或两根引线进行“零点”、“量程”自动校准，以适应各种复杂场所的不同要求。 The core components of the special oil level gauge for vehicle adopts the advanced radio-frequency capacitance detection circuit, with the precise temperature compensation and linear correction via the 16-bit single chip microcomputer, to convert the signal into standard electric signal (4~20mA) accordingly. All the transducer in full series has the self-calibration function, the user can perform the automatic calibration with “zero point” and “measuring range” with only two keys or two lead wires, to accommodate different requirements of complex places in variety.

工作原理 Working principle

油位传感器部分是一个同轴的容器，当油进入容器后引起传感器壳体和感应电极之间电容量的变化，这个变化量通过电路的转换并进行精确的线性和温度补偿，输出 4-20mA 标准信号供给显示仪表。The sensing part of the special oil level gauge for vehicle is a coaxial container, when the oil is poured into the tank, it may cause the capacitance change between the sensor shell and sensing electrode, such change shall be converted through the circuit meanwhile treated with precise linear and temperature compensation accordingly, to output the standard signal in 4~20mA to the display instrument.

二、产品性能 Product performance

● Measuring range 检测范围： （0.15 ~2）m

● Accuracy 精 度 : 0.2％FS

● Pressure range 承压范围 :-0.1MPa~0.5MPa

● Working temperature of detection probe 探极耐温 :-100 ~150 ℃

● Output signal: 0-5V、1-5V输出信号 :0-5V、1-5V、

● Supply voltage 供电电压 :8-40V DC （标准standard 12V）（本安型需经安全栅供电For intrinsically safe type, it shall be with power supply through guard grating.）

● Mounting modes: 固定方式 : Screw thread mounting螺纹安装 M20 × 1.5、M27 × 2、M18 × 1.5、M16 × 1 Flange mounting法兰安装 DN25、DN40、DN50 。Special requirements can be customized accordingly.特殊规格可按要求定制

● Probe diameter探极直径 : Φ 12 、Φ 16 、Φ 25

● Explosion-proof grade: Intrinsically safe ExiaⅡCT6 explosion-proof ExdⅡCT5

防爆等级 : 本安 Exia Ⅱ CT6 隔爆 Exd Ⅱ CT5

● Protection grade 防护等级 :IP65

●Intrinsically safe parameter本安参数 :Ui ： 28VDC ， Ii ： 93mA ， Pi ： 0.65W ， Ci ： 0.042uf ， Li ： 0mH

三、适用场合 Applicable place

油位传感器适合 0.5 MPa 以下，温度在 150 ℃ 以下较粘稠的油质的测量，可附加各种协议通讯FY2B-Y special oil level gauge for vehicle (oil level transducer) in industrial class, is applicable for measurement on grease with temperature below 150 ℃ and pressure below 0,5MPa, it can also add with various communication protocols.

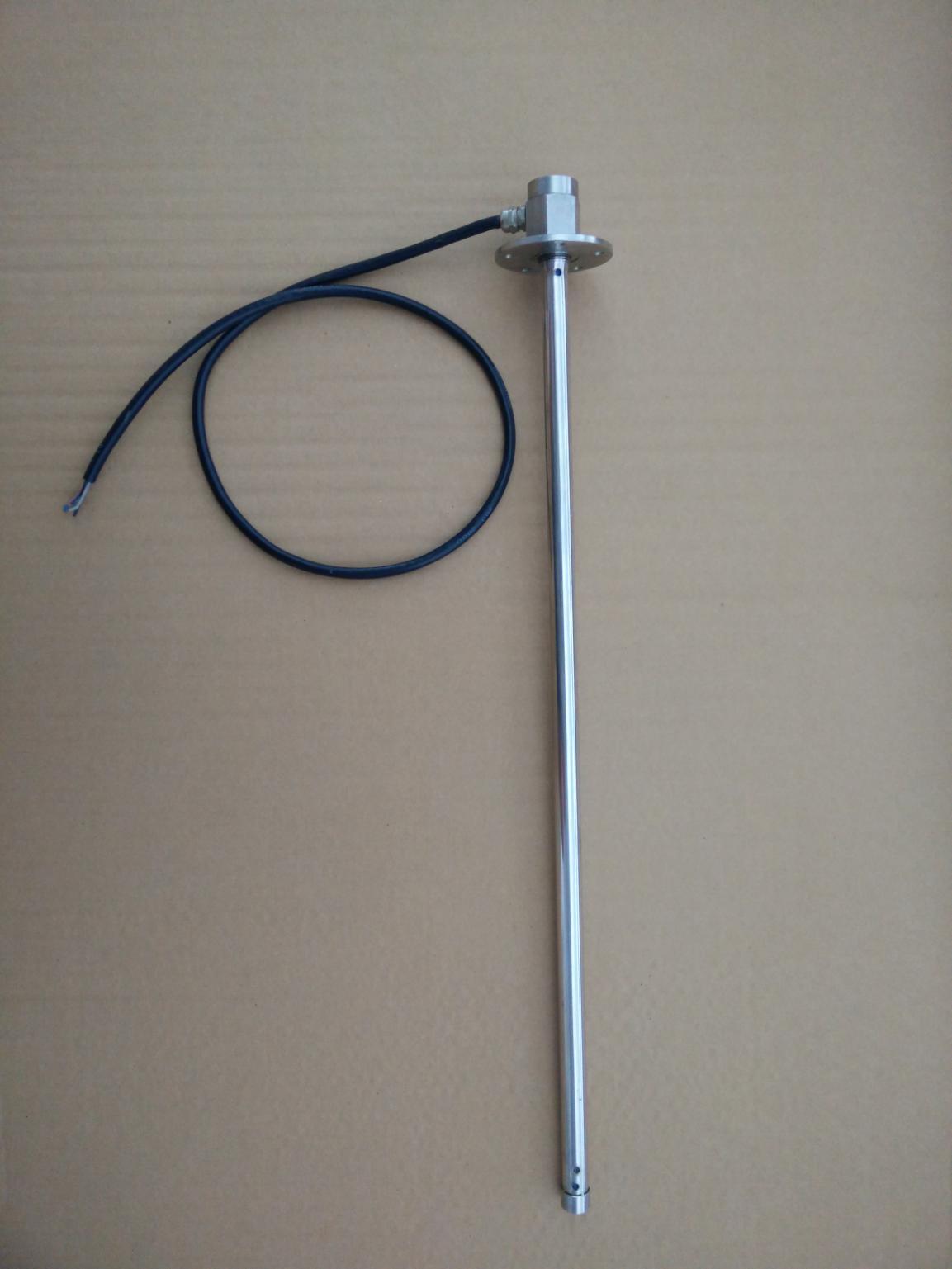

四、产品图片 Product photo

1. 选型表 Selection table

FY9033	油位传感器选型表 Selection table of special oil level gauge for vehicle
	产品 类型 Product type
	1						额定压力≤1.0MPa温度≤150°C Rated pressure ≤1.0MPa, temperature ≤150°C
		输出 信号 Output signal
		A					4-20mA DC信号输出。 4~20mA DC signal output
		B					0-5V DC信号输出。 0~5V DC signal output
			代码 Code	测量范围 Measuring range
			L1				200mm
			L2				500mm
			L3				700mm
			L4				900mm
				代码 Code	接液材质 Fluid receiving material
				D			请在订货时备注 Please remark while ordering
					连接方式 Connection mode
					F		法兰安装(需提供公称直径） Flange connection (nominal diameter shall be provided)
					M		螺纹安装（需提供尺寸） Screw thread connection (dimension shall be provided)
						特殊要求请备注 Special request please leave remark accordingly.
汽车专用油位计 Special oil level gauge for vehicle

七、订货须知：Ordering instructions:

1. 测量范围 Measuring range

2. 工作压力 Working pressure

3. 连接方式 Connection mode

4. 测量介质 Measuring medium
